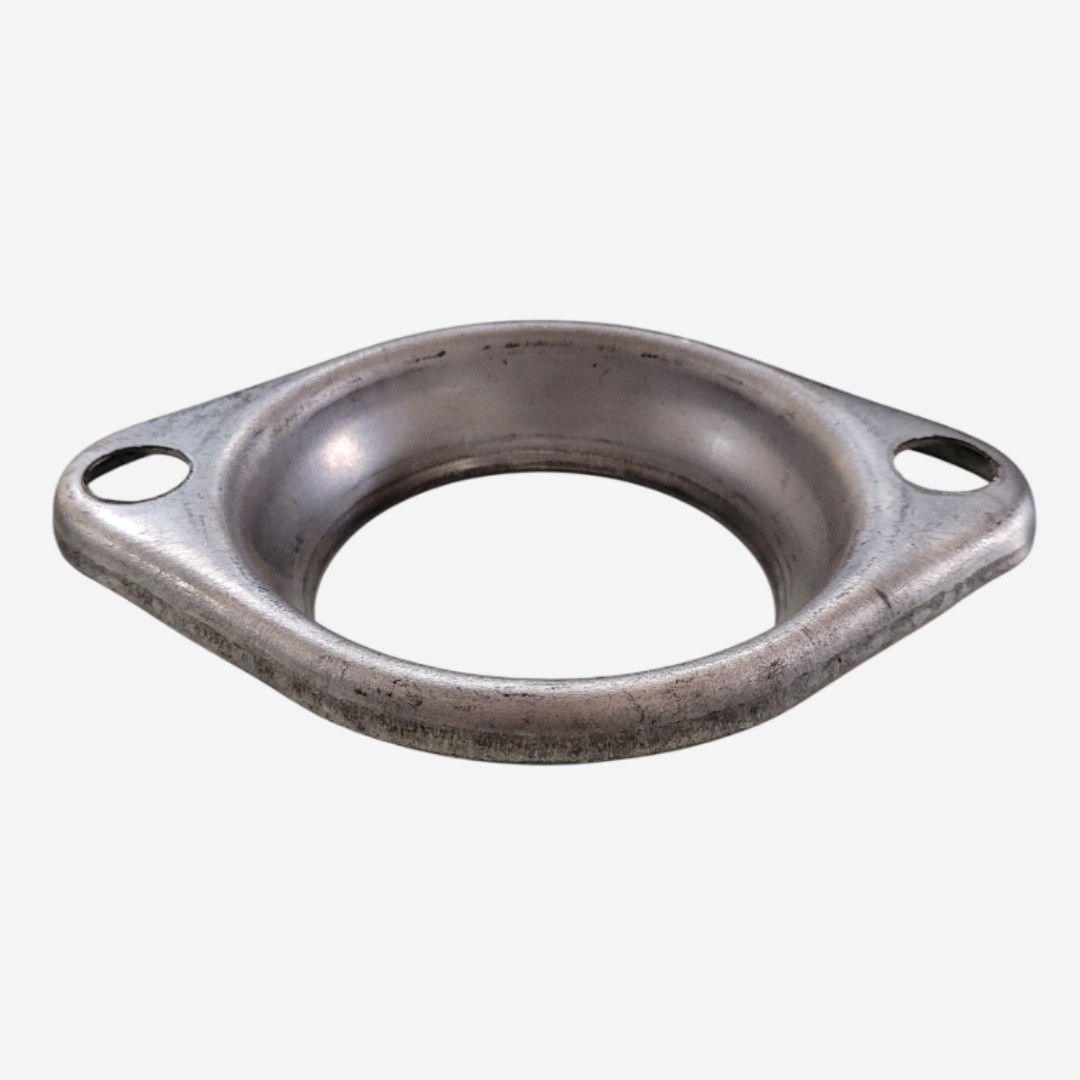

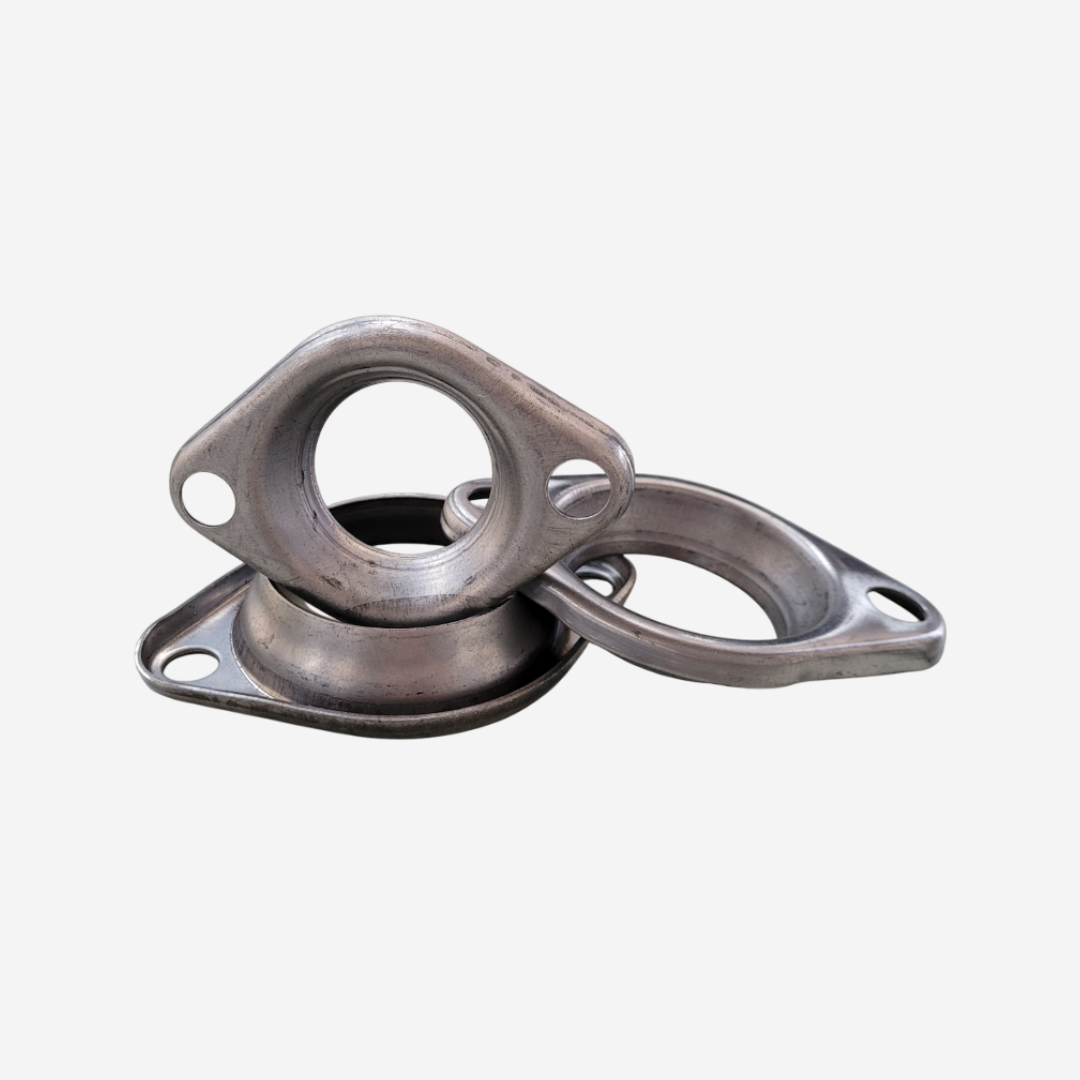

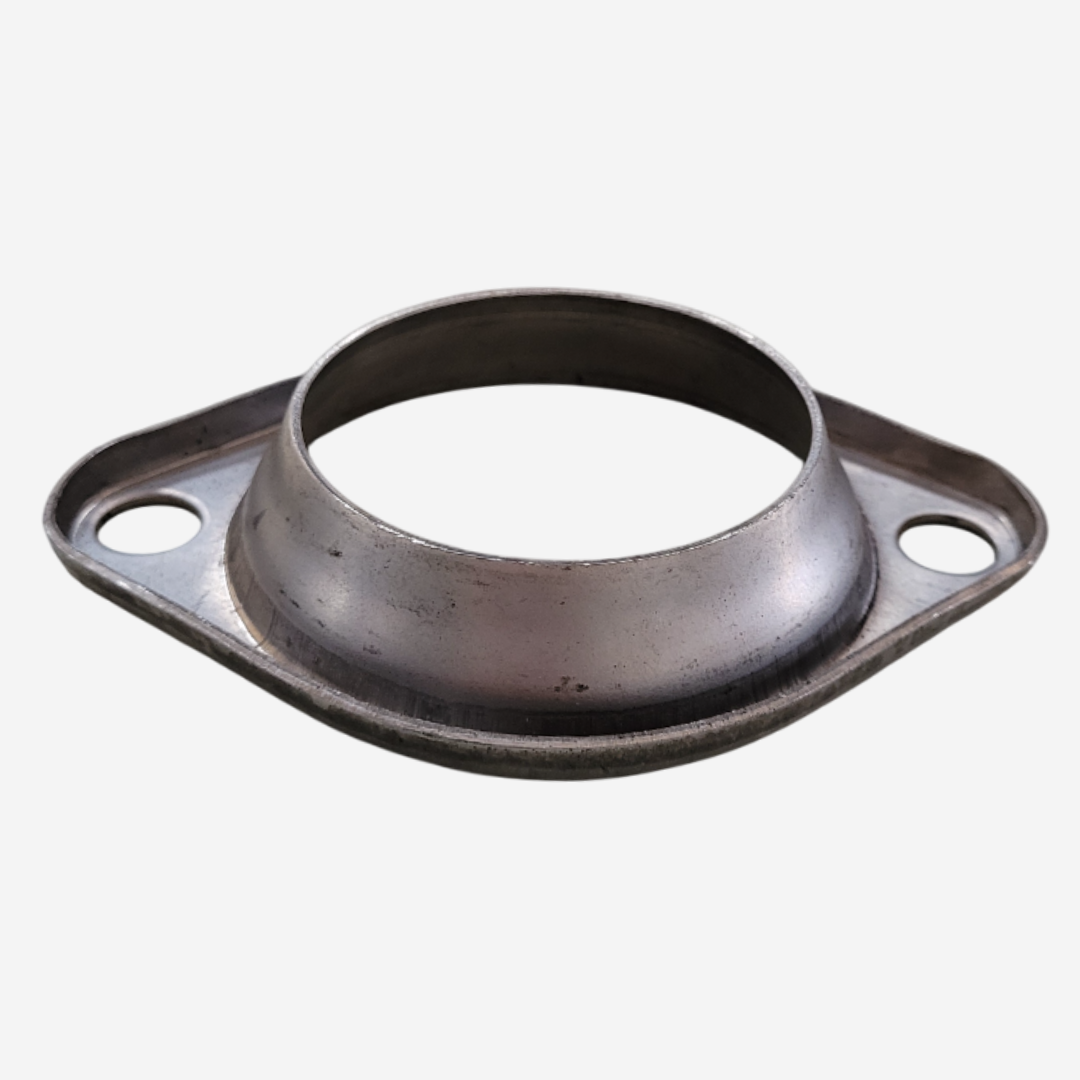

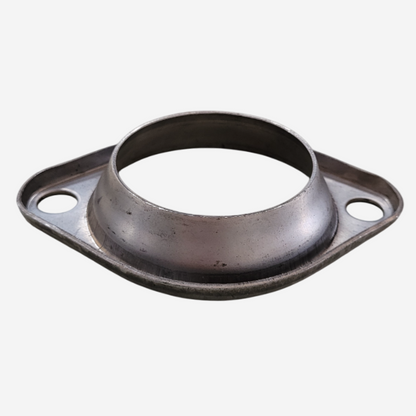

Flared/Donut Exhaust Flange

304 Stainless steel 2 bolt flared/donut exhaust flange

These flared flanges are designed to be used with a donut gasket and fastened with spring bolts. They act as a flexible sealed join in the exhaust system. These are commonly used in factory exhaust systems where a flexi pipe is not installed to allow for movement of the exhaust independent to the engine.

2 inch exhaust flange:

• Center hole = 51mm

• Bolt centers = 99mm

2.5 inch exhaust flange:

• Center hole = 64mm

• Bolt centers = 119mm

3 inch exhaust flange:

• Center hole = 77mm

• Bolt centers = 123mm
