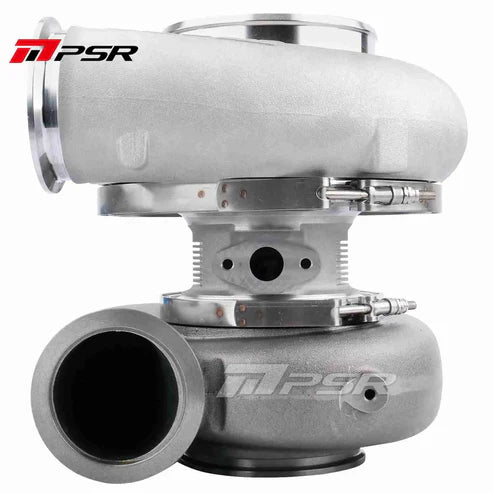

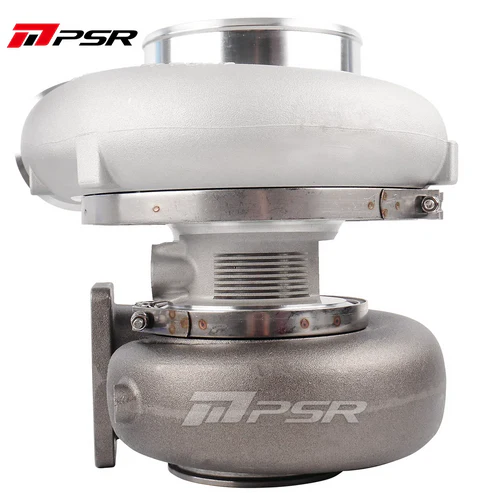

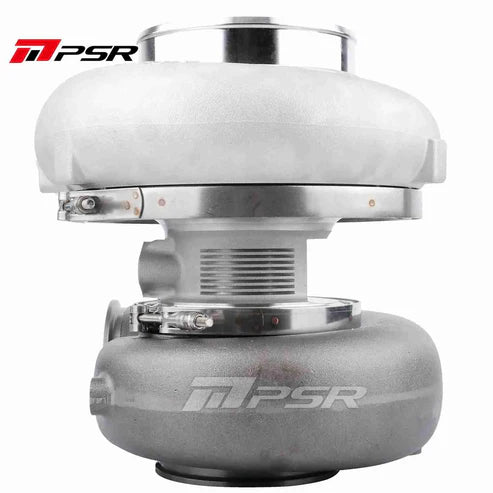

- Dual ceramic ball bearing system provides optimal turbo response &

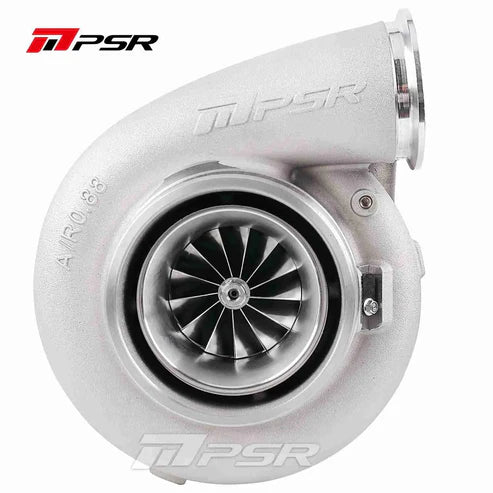

better durability by reducing the shaft-motion - 13 Blade G-Aero billet compressor wheel 88mm inducer produces up to 2000 hp

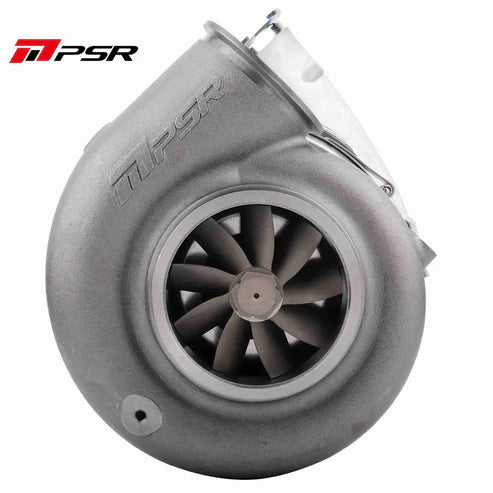

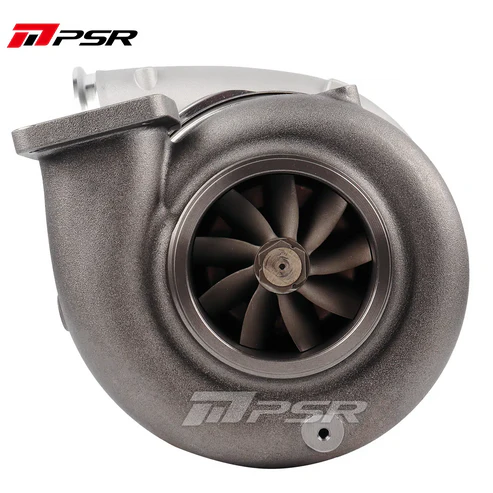

- 9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow
- Fin cooled aluminum center housing, lighter weight
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
- Oil Feed Fitting needs to be bought separately
Details:
- Compressor Wheel: 88.3*133.5*141.8mm
- Turbine Wheel: 118*112mm
- Compressor Inlet: 6” Hose
- Compressor Outlet: 4” V-band
- Compressor Housing A/R: 0.88

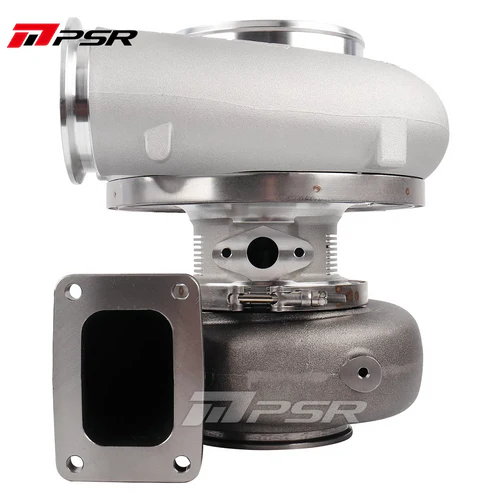

- Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
- Turbine Outlet: 5” V-Band
- Turbine Housing A/R: 1.09/1.25/1.41
- Oil Feed: See graph below (OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)
- Oil Drain: See graph below (OIL OUTLET)
