Pulsar Turbo Systems New Zealand

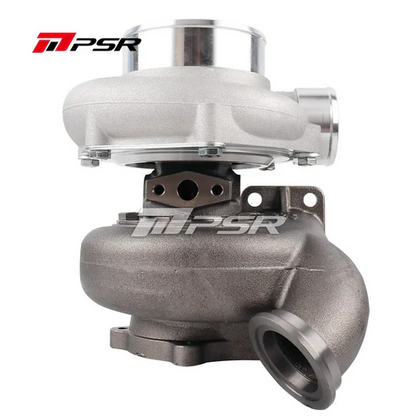

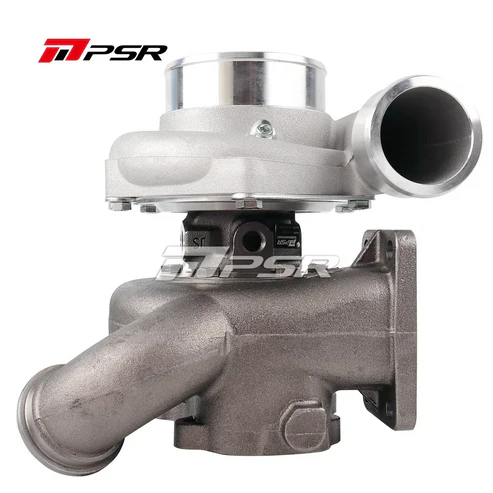

PSR3584 Gen3 Dual Ball Bearing Turbo For Ford Falcon FG XR6

PSR3584 Gen3 Dual Ball Bearing Turbo For Ford Falcon FG XR6

$1,682.00 NZD
$1,682.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Compressor Housing

Features:

  • New Aerodynamic 10 blade billet compressor wheel flow more air over the stock cast or Gen1 11 blade billet wheel
  • Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
  • Larger Turbine Wheel for higher flowability
  • Genuine structure and rebuildable dual ceramic ball bearing system
  • Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet
  • Billet actuator with black anodized coating
  • 3 Layer Stainless Steel 5 Bolt Gasket

Details:

  • Compressor Wheel: 67.3*84.4mm (extended tip diameter: 87.3mm)
  • Larger Turbine Wheel for Higher Horsepower: 74*66mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2.5″ Hose
  • Turbine Inlet: T3 Open
  • Turbine Outlet: 5 Bolt
  • Turbine Housing: 1.06A/R
  • Water Ports: -6AN
  • Oil Feed: -4AN to the Oil Restrictor
  • Oil Drain: Std T3 Oil Drain Flange

Application:

Replacement for factory XR6 PT3582 PT3576 Turbos.

  • 2008+ FG FALCON XR6
  • 2008+ FG FALCON G6E
