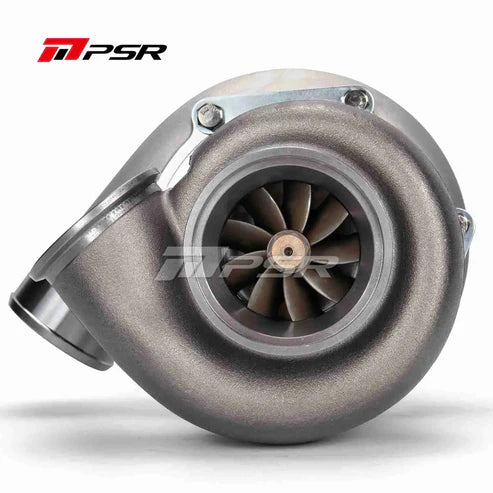

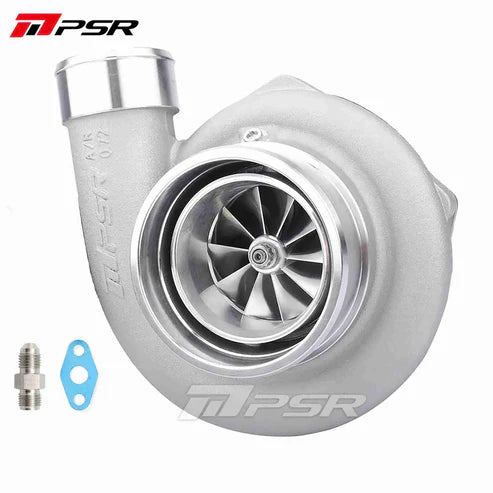

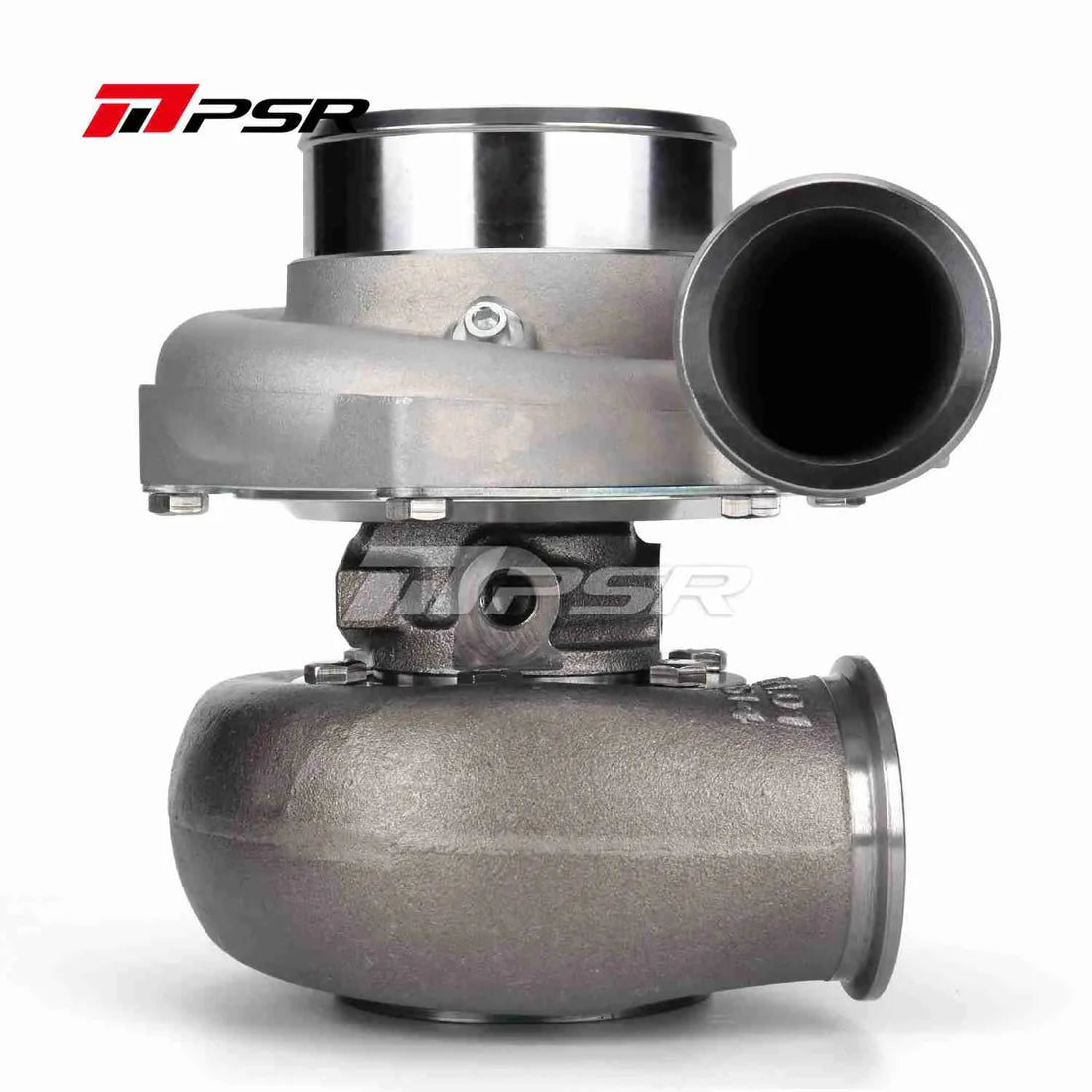

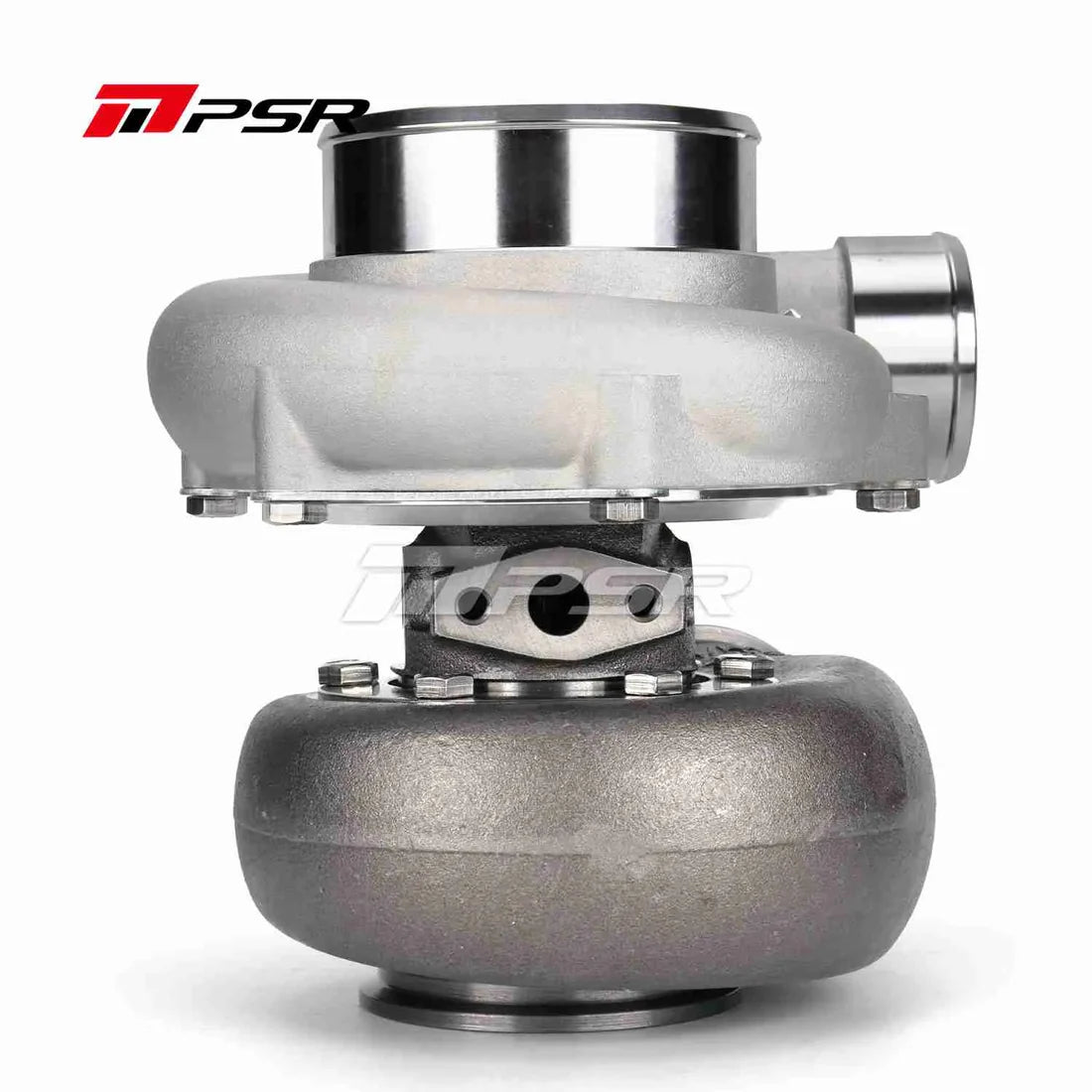

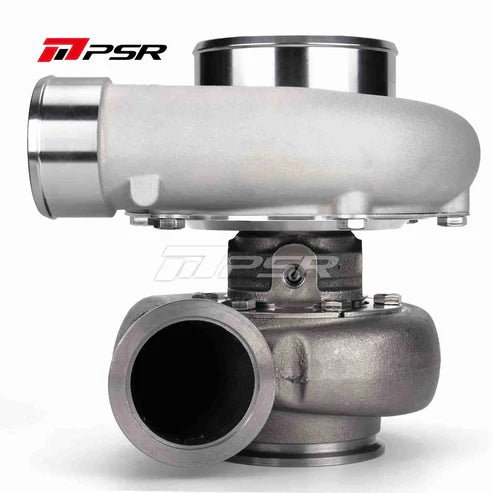

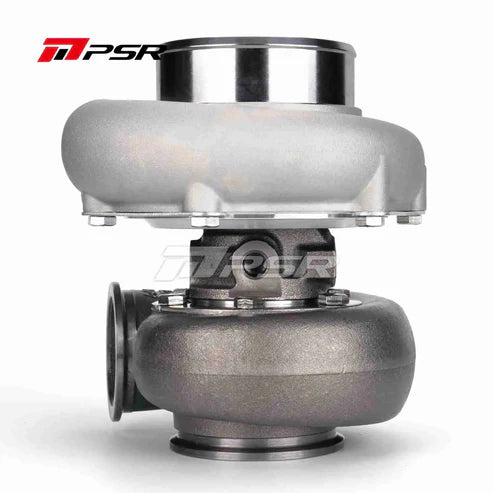

PSR3584 Gen3 Dual Ball Bearing Turbocharger

PSR3584 GEN3 TURBO comes with Larger Turbine Wheel for higher flow.

It has been tested and get more nearly 50 hp!

Features:

• Dual Ceramic Ball Bearing System

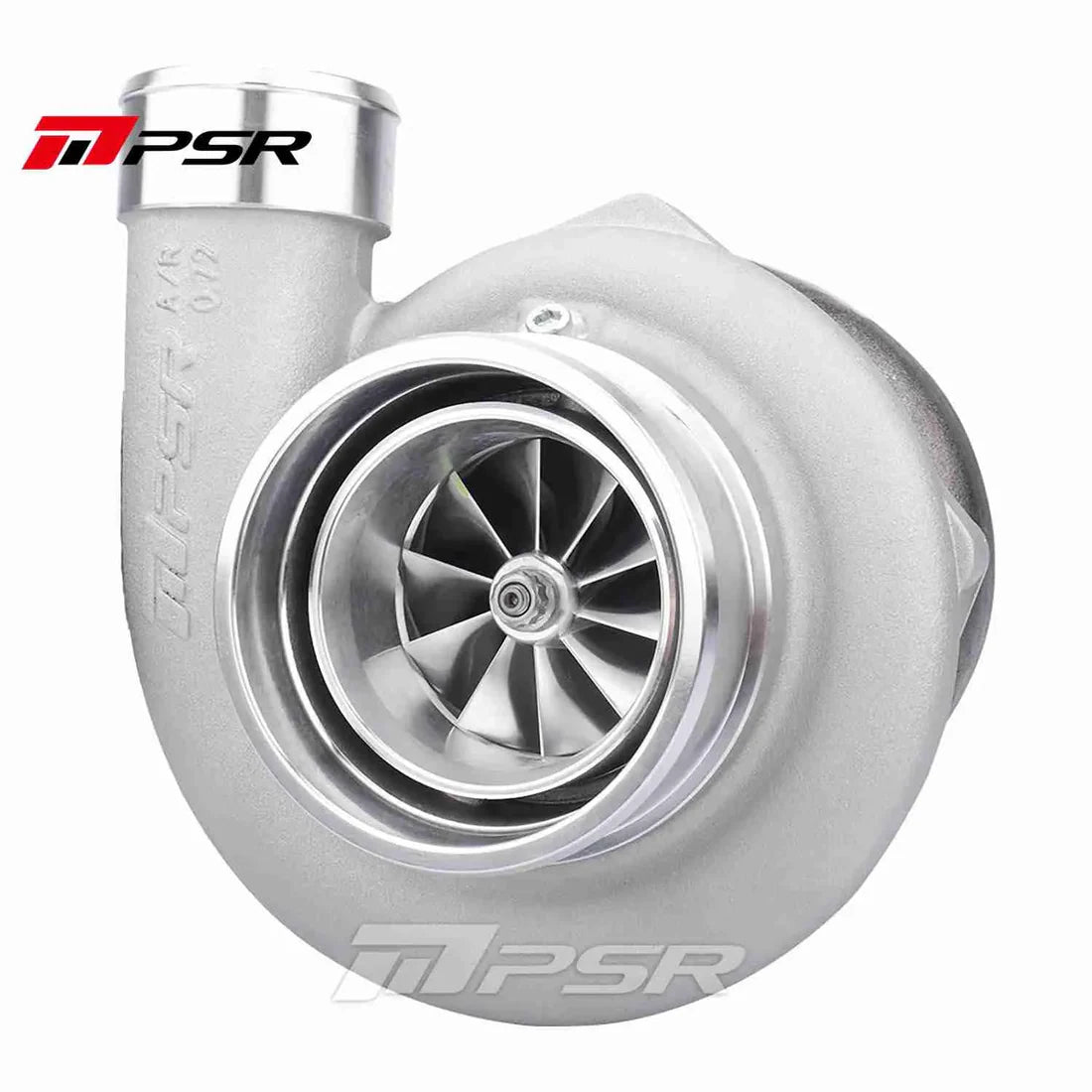

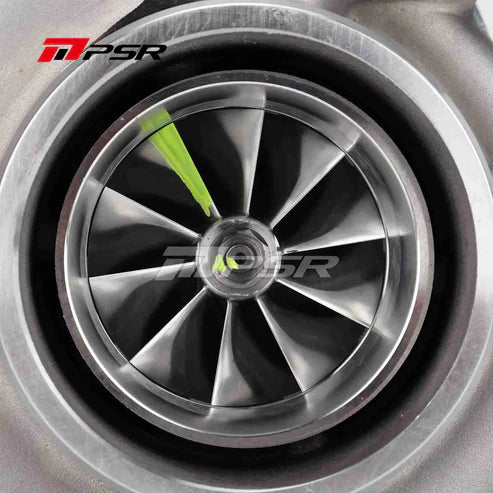

• 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel with High Horsepower

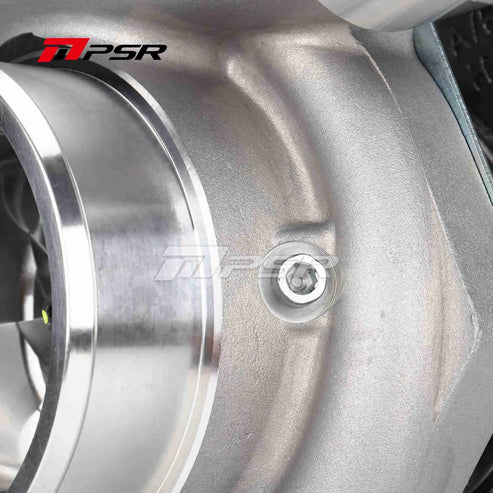

• Cover Integrated with the Speed Sensor Port

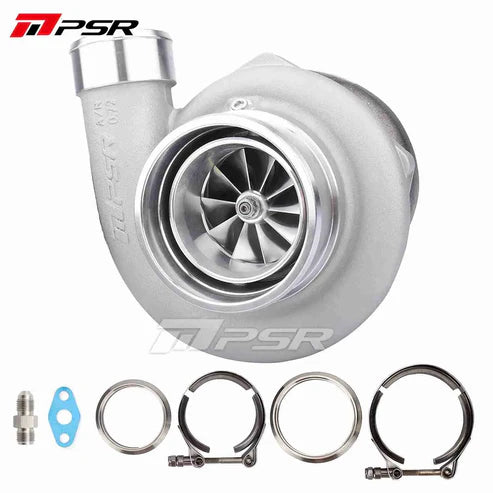

• 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet etc. turbine housings in option

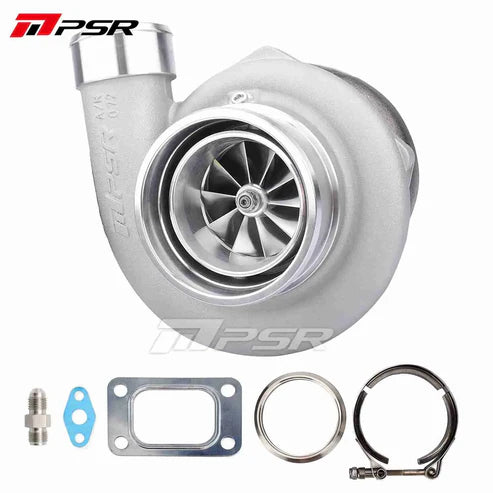

• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
• Larger Turbine Wheel for Higher flow

Details:

• Compressor Wheel: 67*84mm
• Larger Turbine Wheel: 74*66mm
• Compressor Inlet: 4.0” Hose
• Compressor Outlet: 2.5” Hose

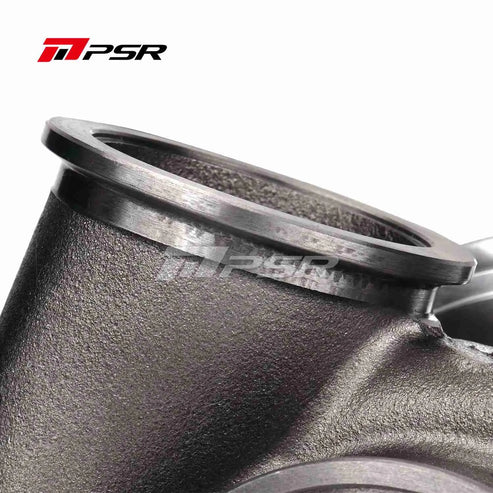

• Turbine Inlet: T3, T4, or 2.5″ V-Band

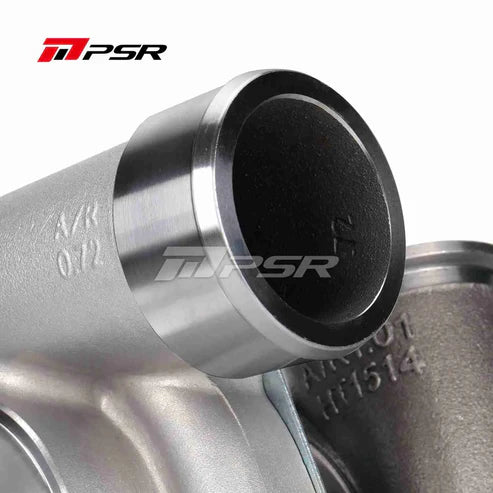

• Turbine Outlet: 3″ V-Band (3.55″OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5
• We highly recommended running water cooling for better durability
