V-Band Clamp Kits

Quick release V-Band clamp kits

Our 304 stainless steel V-band kits are engineered for fast, secure installation and removal of exhaust systems and turbo components.

The precision-machined, self-aligning weld flanges feature a male-to-female interlocking design. This ensures accurate alignment during assembly while creating multiple sealing surfaces to minimise leaks and reduce the risk of flange distortion.

The heavy-duty clamp design maintains consistent clamping force, keeping your system sealed under load while still allowing easy disassembly for servicing or future modifications.

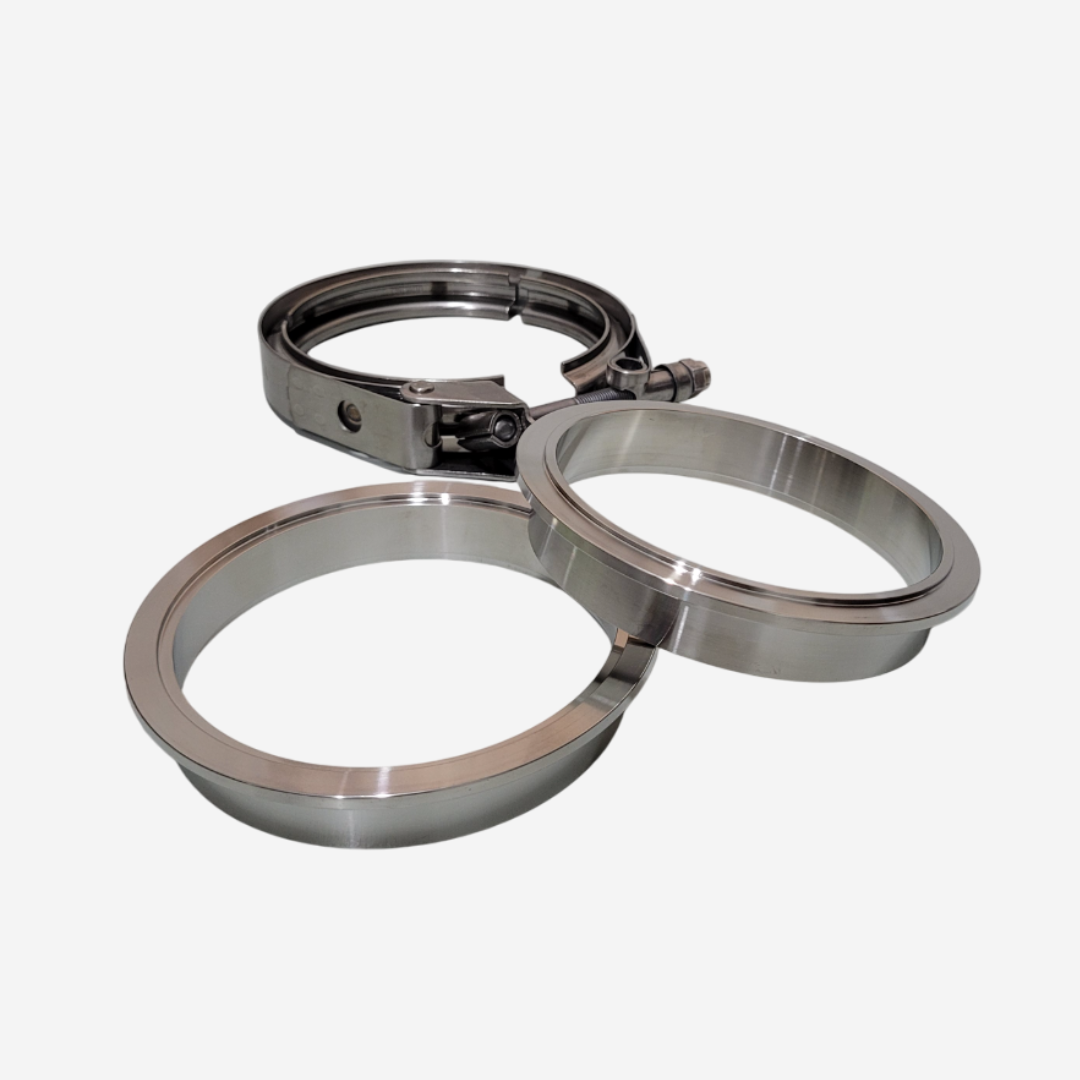

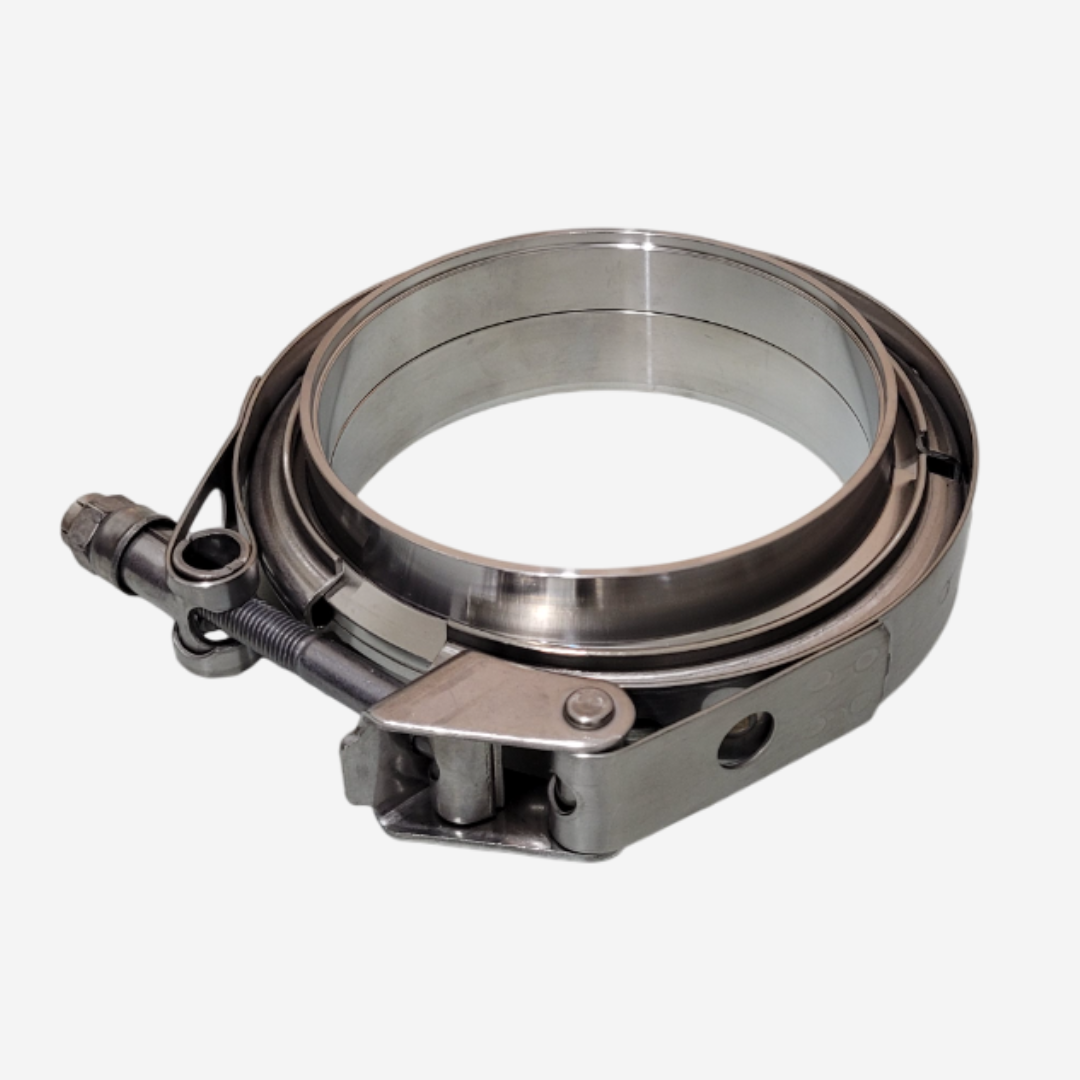

Kit Includes:

• 1 x Pair of precision-machined stepped flanges

• 1 x Self-aligning V-band clamp

Features:

• Stepped flange design for precise alignment and superior sealing

• Multiple sealing surfaces to reduce leaks


Installation Tips:

• Apply anti-seize or copper grease to the clamp threads before assembly and removal.

• Clamp the flanges together during welding and use low amperage to minimise distortion.

• RTV sealant should not be required. If sealant is needed, inspect for warped or damaged flanges.

• Do not overtighten — 3–5 Nm is sufficient. The V-band’s wedge design provides the sealing force.

• Avoid tightening or loosening the clamp while hot, as thermal expansion increases the risk of thread damage.

Designed for reliability, serviceability, and long-term performance in high-temperature applications.
